EXPERIENCE THE LIMITLESS POWER
OF YOUR LIGHT BEE

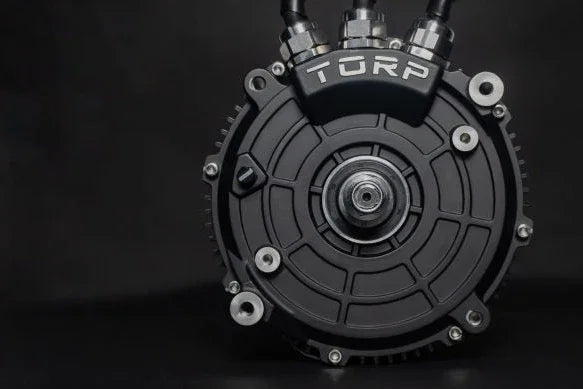

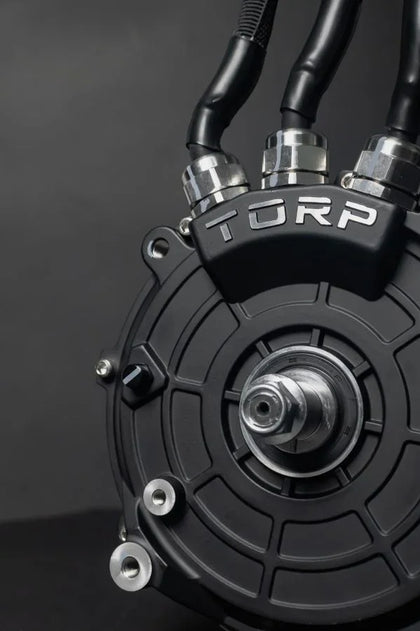

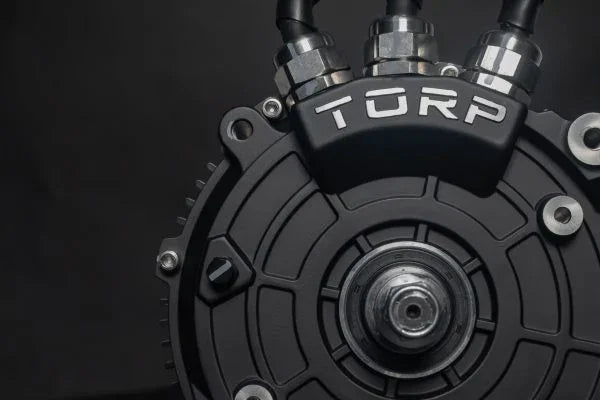

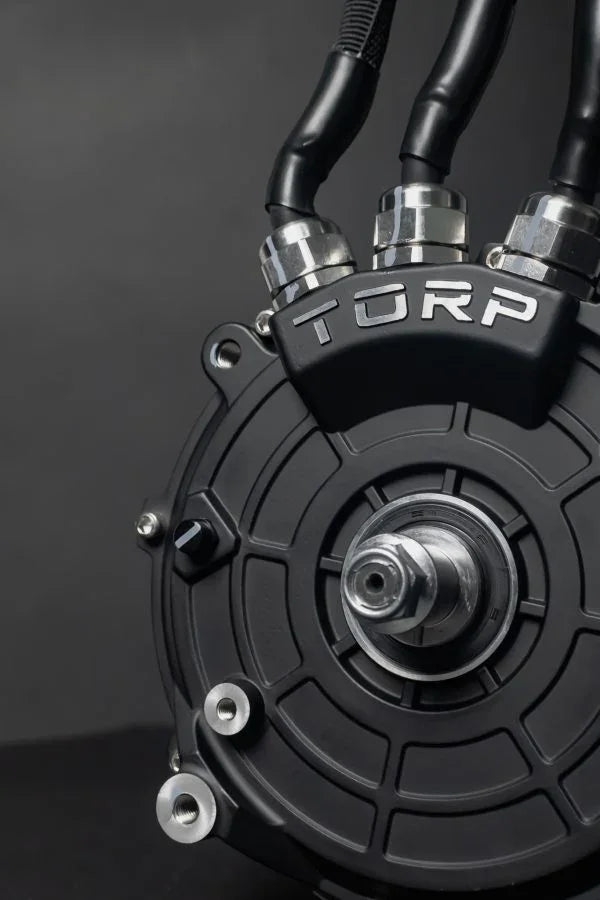

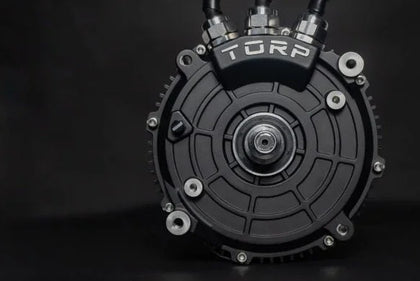

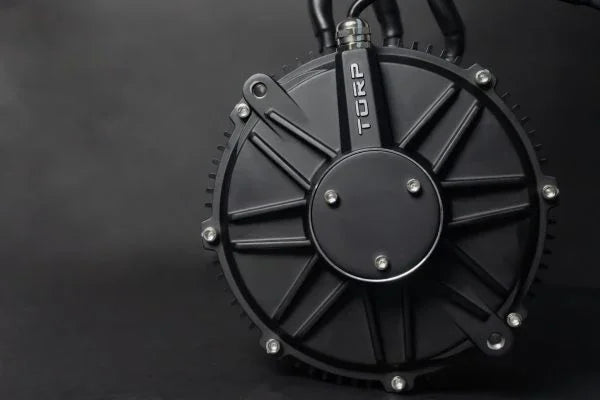

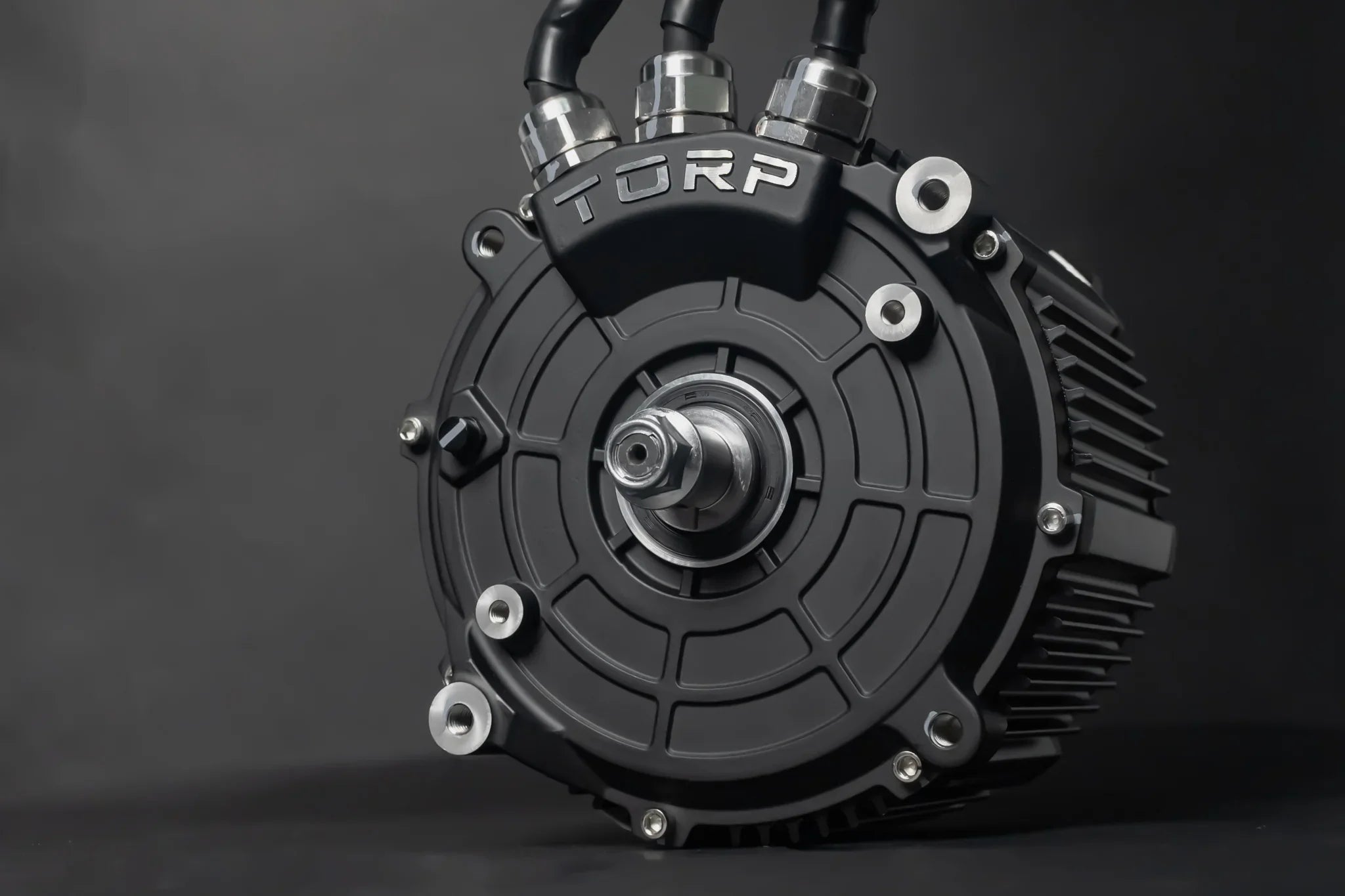

The Torp TM40Pro is a game-changer when it comes to Surron Light Bee.
Our engineers have maximized the power output of the Surron Light Bee by designing a motor with 65mm-wide magnets. This innovation delivers peak performance within a small, lightweight frame.
Engineered for the sole purpose of pushing both you and your bike to the absolute limits, this powerhouse is built for those who crave power and dominance.
Lead the pack at drag races, shatter records, and impress your friends with the most powerful Surron Light Bee on the track!
Packing 50kW of power, the TM40PRO is built for those who crave ultimate dominance on the road. Right from the first twist of the throttle to crossing the finish line, this powerhouse guarantees you’ll surge past the competition and secure first place.
IMPORTANT: The TM40PRO is so powerful, that for safe and optimal use, a full upgrade of the Surron Light Bee is required (from upgraded chain, sprocket, belt, and brakes all the way to the very powerful battery).
Developed for maximum power, due to its thick wires, wide magnets, and the lowest electrical resistance!
The ultimate upgrade for Surron Light Bee X with mounting options for other vehicles.
Encoder or Hall: wide range of compatibility with superb precision with Torp controllers even at high speeds.
Developed in the EU: superior materials for lasting performance.
What makes the TM40Pro motor unique?
-Developed for maximum power, due to its thick wires, wide magnets, and the lowest electrical resistance!
-Encoder or Hall: wide range of compatibility with superb precision with Torp controllers even at high speeds.
-Developed and designed in the EU: high-quality materials for increased longevity
-Compatible with the TC1000 controller
TM40 motor comes in two versions, TM40Pro and TM40: Both are engineered to break acceleration records and dominate the drag strip, while each model is expertly tuned to your unique riding style: TM40PRO is designed for reaching high top speed, while TM40 is more suitable for off-road rides.
Technical specifications:
-Peak Power: 50 kW
-Continuous Power: 19 kW
-Max Phase current: 1100 A
-Max Torque: 86 Nm
-Torque 500 A: 48 Nm
-KV rating: 97 RPM/V
-Motor Resistance: 2.4 mΩ
-Phase cross-section: 35 mm²
-Magnet length: 65 mm
-Weight: 12 kg
-Motor Size: 115X165 mm
-Motor type: IPM
-Max RPM: 11 000 RPM
-Position sensor: Encoder
-Encoder points: 1024 (4096)
-Max magnet temp.: 150 °C
-Temp. sensor: PT1000
-Efficiency: up to 95%
-Protection class: IP67*
-Terminal lug size: M6 35 mm²
-Installation: Mid
-Number of pole pairs: 5
-Cooling method: Air
-Warranty: 2 year
User manual
**Our products have an IP67 rating, achieved by testing in distilled water under laboratory conditions. Please note that this rating does not imply suitability for continuous underwater use as it may result in damage. Additionally, the connectors on the product are not waterproof and must be kept dry to ensure proper functionality and safety. The warranty does not cover malfunction or damage arising from the use of the motor in activities where frequent or extended submersion in water is expected, such as riding in streams, rivers, or flooded areas. Over time, seals and components may degrade, reducing the water-resistant effectiveness of the product. Damage resulting from this natural wear and tear is not covered by the 2-year warranty.
Modifying a stock electric vehicle can result in the vehicle becoming non-compliant with your local road safety regulations. It’s essential to consult with experts or authorities before modifying your vehicle to ensure adherence to road legality.
